MOTORLESS GROUND-DRIVEN SPRAYERS WHICH DO NOT REQUIRE GASOLINE OR BATTERIES FOR ACCURATE CHEMICAL APPLICATION OF HERBICIDE, FUNGICIDE OR INSECTICIDE. Patented and made in the U.S.A.

An Adobe Acrobat file of our popular models.

<<Request Info>>

Click On the images below.

The Grounds Wheelie applies liquids at the rate of
1 gallon per 1000 sq. ft. It is ground-driven; the
faster it is pushed, the faster it pumps. No gasoline,
no batteries. What could be easier?

WS-485 Push Sprayer
WS-485 Grounds
Wheelie II
WS-490  Push Sprayer
WS-490 Greens
Wheelie
Foo WS-250  Push Sprayer
WS-250 Lawn
Wheelie II
WS-495 Push Sprayer
WS-495 Turf
Wheelie II

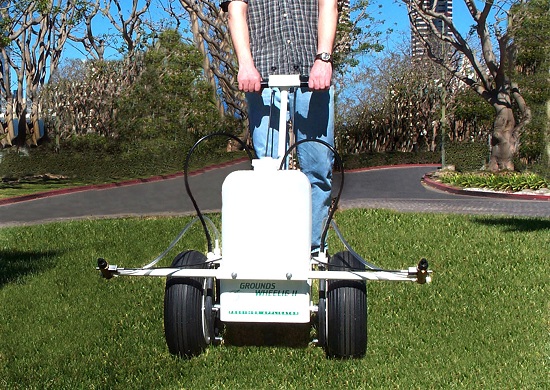

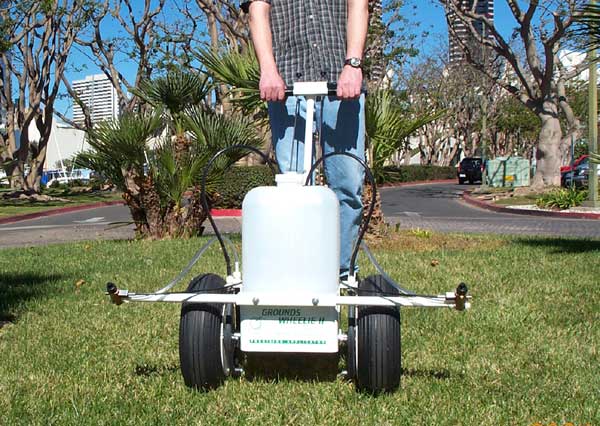

WS-485 Grounds
Wheelie II

The WS-485 Grounds Wheelie II is a quality heavy-duty sprayer designed for professional grounds maintenance. It is equipped with shut-off controls on the handle grips and extra large tires to make pushing easier on uneven terrain. The Grounds Wheelie II is the best designed, highest quality, most accurate, and cost effective applicator available today. The nozzles operate independently with shut-offs at the handle; it will also allow the operator to “spot-spray” where needed. The twin wheel pumps spray a fan of solution 6' wide, at the rate of 1000 sq. ft. per gallon. The WS-485 Grounds Wheelie II has a pull-out tank. Some lawn care specialists order an extra 6 gallon tank to take to the site. (Or, taking two different chemicals to the work site.)

Additionally, the WS-485 Grounds Wheelie has been used for many years to spray brine solutions on sidewalks and parking areas to prevent/treat ice and snow. Many grounds professionals are now using potassium acetate based liquid deicer in their public areas to prevent ice from forming in the first place. These are “hot” new products and will work well in all of our sprayers. All Wheel Spray ground-driven sprayers will deliver applications that are relatively unchanged by the speed they are pushed. The faster they are pushed, the faster they pump. The turf care professional will want to take a look at these simple and accurate sprayer units.

back to top

WS-485 Push Sprayer

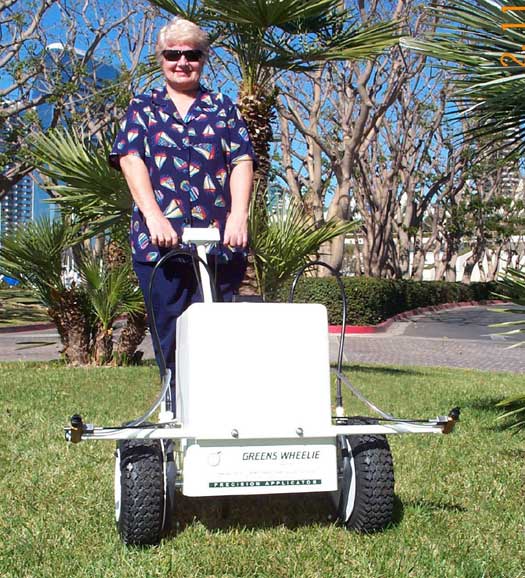

WS-490 Greens
Wheelie

The WS-490 Greens Wheelie is a 10 gallon push-type professional unit featuring the famous Wheel Spray ground-driven pumping system. The motorless Wheel Spray design gives turf managers and professional lawn care companies the benefit of a boom type spreader without the worry of engine maintenance. With no batteries or engine noise, these sprayers will promote a quiet, low profile for application of herbicides, fungicides, growth regulators and deicers.

The twin wheel pumps spray a fan of solution 6' wide, at the rate of 1000 sq. ft. per gallon. The WS-490 Greens Wheelie will deliver applications that are relatively unchanged by the speed it is pushed. The faster they are pushed, the faster they pump. The nozzles operate independently with shut-offs at the handle; it will also allow the operator to “spot-spray” where needed. The turf care professional will want to take a look at these simple and accurate sprayer units.

All units on this page feature the famous Wheel Spray motorless pumping system. This design gives turf managers and lawn care professionals the benefits of a boom-type spreader without the worry of engine maintenance. With no batteries or engine noise, these sprayers will promote quiet low-profile chemical applications and eliminate the need for larger tank trucks with their insurance and liability problems. They are made in the.

back to top

WS-490 Push Sprayer

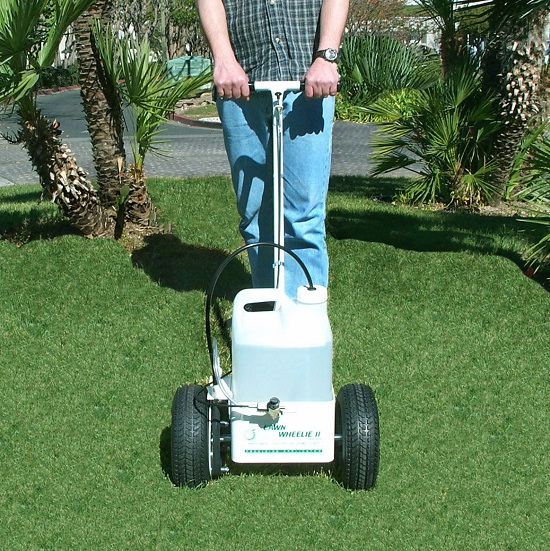

WS-250 Lawn Wheelie II
Motorless Liquid Chemical Spreader

The WS-250 Lawn Wheelie is the best designed, highest quality, most accurate and trouble-free liquid applicator manufactured. It does not require gasoline, batteries, cords or water hoses. The WS-250 Lawn Wheelie features the popular motorless system that Wheel Spray Corp. is known for.

The Lawn Wheelie is used to apply liquid fertilizers, herbicides, fungicides, insecticides and liquid deicers. The wheel pump sprays a fan of solution 36” wide at the rate of 1000 sq. ft. per gallon. It is equipped with large easy-to-push pneumatic type rubber tires, a 2.5 gallon tank, and a wide mouth lid for easy filling and cleaning. The pumping system and the 2.5 gallon tank are constructed of corrosive resistant materials.

The spray pattern is delivered from the nozzle in the form of tiny droplets providing a steady, uniform application that greatly reduces costly chemical drifting. The nozzle/valve control, located on the handle, allows the operator to shut-off the sprayer when moving to the site. The Lawn Wheelie delivers chemical applications that are relatively unchanged by the speed at which the sprayer is pushed. The faster it is pushed, the faster it pumps. When the operator stops, the sprayer stops pumping. The WS-250 is most popular with lawn care professionals for use in confined areas. Its low cost, easy maintenance, and simple operation make it suitable for any smaller application.

back to top

WS-250 Push Sprayer

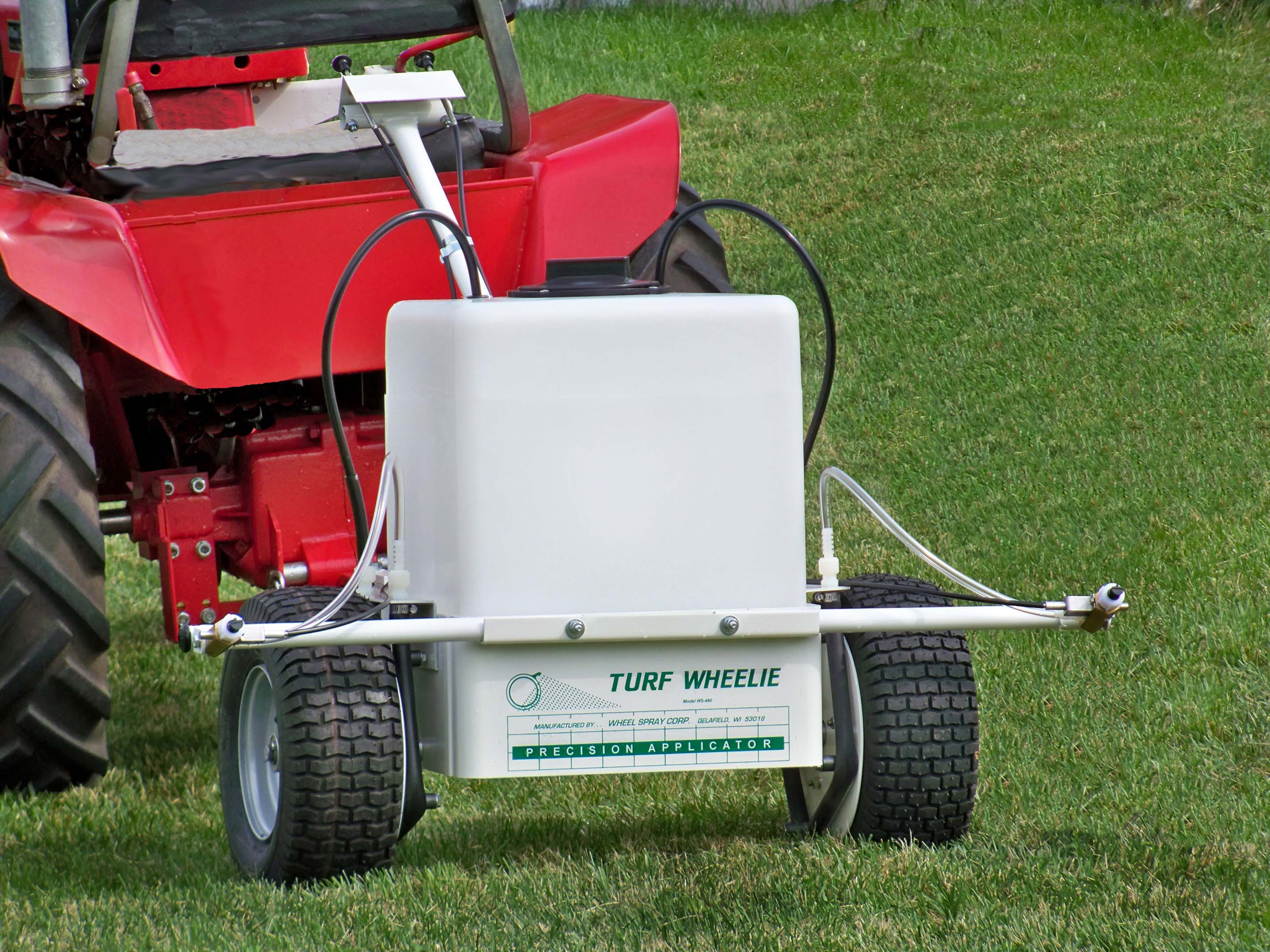

New WS-495 Turf Wheelie II
(10 gallon pull-type sprayer)

The WS-495 Turf Wheelie II is the newest sprayer in the Wheel Spray Line and features the popular motorless system that Wheel Spray Corp. is known for. It is similar to the WS-490 Greens Wheelie with its 10 gallon tank, ground-driven pumping system, and large turf type tires.

The WS-495 Turf Wheelie II features a tow bar to pull the unit behind a tractor or riding mower and shut-off controls convenient to the operator. The pumping system and the 10 gallon tank are constructed of corrosive resistant materials. This well-built unit is used to apply liquid fertilizers, herbicides, fungicides and growth regulators. The twin wheel pumps spray a fan of solution 6' wide, at the rate of 1000 sq. ft. per gallon.

The WS-495 delivers chemical applications that are relatively unchanged by the speed at which the sprayer is pulled. The faster it is pulled the faster it pumps. When the operator stops, the sprayer stops pumping. The spray pattern (72") is delivered from (2) nozzles in the form of small droplets providing a steady, uniform application, greatly reducing costly chemical drifting. The shut-off controls allow the operator to use the nozzles independently. This is a very popular feature with turf care professionals.

back to top

WS-495 Push Sprayer
